Mastering Annular Cutters: A Comprehensive Guide to Precision Hole Cutting
What is an Annular Cutter?
An annular cutter is a specialized drilling tool designed to cut holes in metal, wood, and plastic by removing only the outer ring of material, leaving a solid core. Unlike conventional twist drills, which grind the entire hole area, annular cutters use a tooth-tipped tube that rotates at high speed to cut efficiently. This design reduces cutting forces, minimizes heat buildup, and produces cleaner holes with less burring. Annular cutters are commonly used in structural steel fabrication, shipbuilding, automotive repair, and construction.
Key Features and Benefits
Annular cutters offer several advantages over twist drills. First, they are faster because they only cut the circumference; the core is ejected after the cut. Second, they require less power and can be used with magnetic drill presses. Third, the precision of annular cutters results in holes that are perfectly round and within tight tolerances. Additionally, the thin wall of the cutter reduces material waste and allows for use on thick materials up to several inches. Common sizes range from 12 mm to 150 mm in diameter, with shanks typically 19 mm (3/4 inch) for magnetic drills.
Types of Annular Cutters
Annular cutters are made from various materials, including high-speed steel (HSS), cobalt steel, and carbide-tipped. HSS cutters are economical for general use, while cobalt cutters handle harder materials like stainless steel. Carbide-tipped cutters are ideal for abrasive materials such as composites or hardened steel. Coatings like TiAlN (titanium aluminum nitride) or AlTiN (aluminum titanium nitride) can increase tool life by reducing friction and heat. Moreover, some cutters feature split-point geometry for easier starting and reduced walking.
How to Use an Annular Cutter
Proper usage ensures safety and efficiency. First, secure the workpiece firmly, preferably using clamps or a magnetic drill press. The cutter must be perfectly aligned perpendicular to the surface. Pilot pins are often used to guide the cutter; install the correct pin for the diameter. Apply cutting fluid (oil or coolant) to the cutting edge and workpiece to lubricate and cool the cutter. Start the drill at low RPM (e.g., 200–400 RPM) and gradually increase speed as the cut proceeds. Use steady, moderate pressure; let the cutter do the work. When the cut is complete, the core will eject. Inspect the hole for burrs; a deburring tool may be needed.
Maintenance and Care
To extend the life of your annular cutter, regular cleaning is essential. Remove chips and debris after each use. Re-sharpening is possible for HSS and cobalt cutters, but carbide cutters must be replaced when dull. Store cutters in a dry place, preferably in a case or rack to avoid damage to cutting edges. Avoid overheating by using adequate coolant; excessive heat can cause tempering or cracking. Check the shank for wear or damage; a loose shank can cause vibration and poor cut quality.
Choosing the Right Annular Cutter

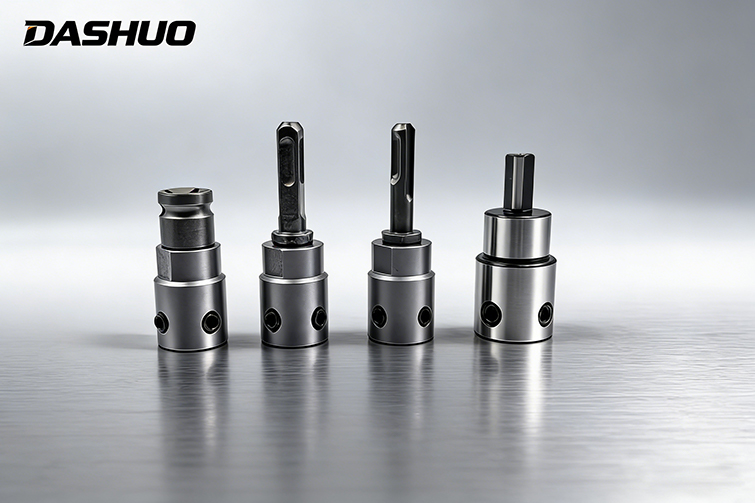

Select the cutter based on material type, thickness, and hole diameter. For steel up to 1 inch thick, HSS cutters are sufficient. For stainless or high-strength alloys, choose cobalt or carbide. The cutting depth must match the cutter length; standard lengths are 1, 2, and 3 inches. Also consider the shank type: most magnetic drills use a 19 mm shank with a Weldon flat, but some require other sizes. Always check the RPM rating of the cutter; using too high a speed can cause premature wear.
Common Applications
Annular cutters are versatile. They are used for creating holes for bolts, piping, and wiring in structural beams. In shipbuilding, they aid in plate aligning and fastening. Automotive repair shops use them for chassis work. Construction crews rely on them for rebar, formwork, and steel studs. They also cut non-ferrous metals like aluminum or copper, and even plastics with appropriate speeds.
Safety Tips
Always wear safety glasses and gloves. Secure the workpiece to prevent spinning. Ensure the drill is stable before starting. Do not force the cutter; if it stalls, reduce pressure. Keep hands clear of the rotating cutter. Use a chip guard to contain flying debris. After cutting, the core may be hot; allow it to cool before handling. Disconnect power when changing cutters.
Troubleshooting Common Issues
If the cutter wanders or starts off-center, check the pilot pin or shank alignment. Chipping or breakage often results from excessive speed or force. Reduce RPM and pressure. Rough finish indicates dull cutter or insufficient lubrication. Replace or re-sharpen, and ensure ample coolant. Overheating may cause discoloration; use faster feed or more coolant. Core jamming can be avoided by clearing chips regularly.
FAQs
1. Can annular cutters be used on a hand drill?
Yes, but magnetic drill presses are recommended for stability and precision. Hand drills can be used with a pilot pin and steady pressure, but ensure the drill has sufficient power and low RPM capabilities.
2. How do I sharpen an annular cutter?
Sharpening requires a specialized grinder with a conical or flat wheel. HSS and cobalt cutters can be resharpened multiple times; carbide cutters are generally not resharpened. Refer to the manufacturer's guidelines.
3. What is the difference between an annular cutter and a hole saw?
Annular cutters have a solid shank and use a pilot pin, while hole saws have a detachable cap and often cut deeper holes. Annular cutters are more precise and suitable for thicker steel.
4. Why does my cutter produce a loud noise?
Loud noise may indicate a dull cutter, excessive speed, or lack of lubrication. Check the cutting edge and adjust speed or coolant.
